NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

Get high-quality NPT High Speed Steel M2 Taper Pipe Thread Taps direct from our factory. Top-notch performance and durability guaranteed.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Our Advantages
  • Packaging & Shipping
  • WORKSHOP
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
NPT 1/8
Pieces
1
Application
Motorize, Manual
Customized
Non-Customized
Tolerance
6h
Surface Finishing
Tin Finished
Type
Tap
Sample
Available
Pich Angle
55°
Transport Package
Plastic Box
Specification
3/8 npt
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
300000PCS Per Mouth

Product Description

Product Description

NPT taps have a steeper flank compared to metric threads: thread angle 55° compared to thread angle 60° of metric threads. There is a distinction between conical and cylindrical types of Whitworth-threads. Conical threads according to DIN EN 10226-1 (old DIN 2999) are referred to as metallic sealing.

The reason for that is that the nominal diameter of a conical thread matches the mating thread after several turns. By further tightening the pipe, both threads jam and thus become metallic sealing. Cylindrical threads according to DIN ISO 228 are not self-sealing. (Abbreviation = G)

Material: High Speed Steel -M2
Package: We could make customerised package, and normally our package is 1pcs packed into a plastic case.
Delivery date: Normally for customer brand new orders, the lead time is around 40days, it's ok to check case by case.

Straight flute full size taps used as machine taps for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length
Product:
NPT MACHINE TAPS
Brand:
OEM/ODM
Standard:
ISO/JIS/DIN
Shank Type:
Parallel shank/Straight shank
Size:
NPT1/8 -- NPT2
Material:
HSS Cobalt M35 / HSS Cobalt M42 / HSS M2 / HSS
Direction:
Left/Right
Color:
Gold / TIN /TiCN
Process:
Full ground
Hardness:
63-65HRC
Application:
For Stainless steel, high temperature alloy, titanium alloy, high strength steel and carbon fiber composite materials, etc.
Package:
1 pcs /plastic box
Delivery Time:
withing 3-30days according to your order quantity

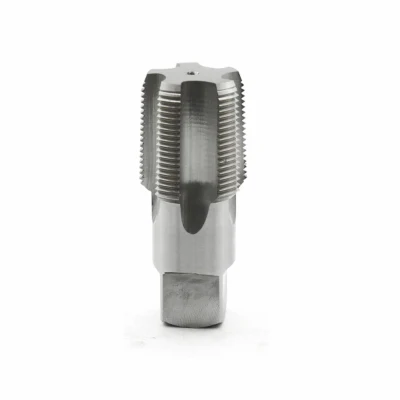

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

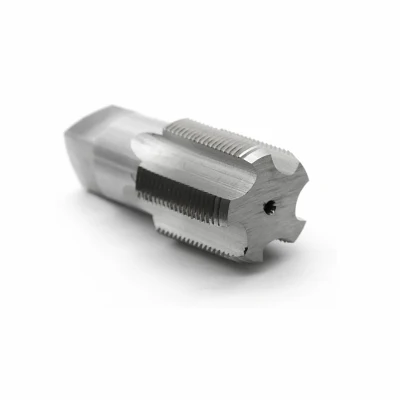

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

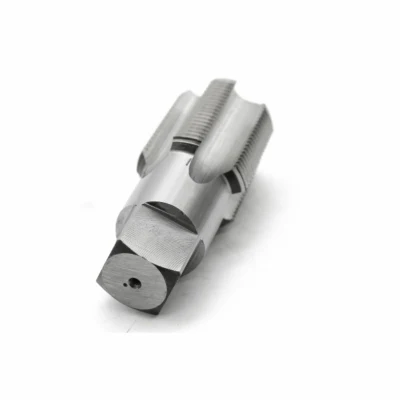

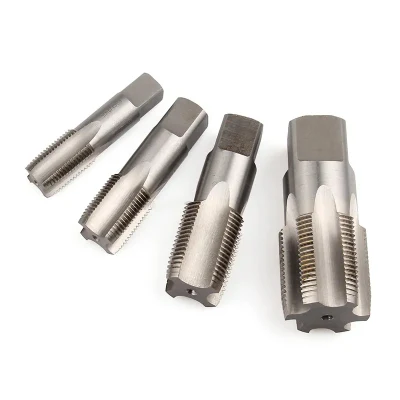

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

Product Parameters

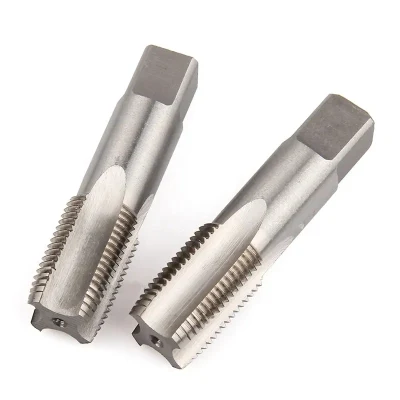

  NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
Nominal Pitch, Number of Threads L Link Diameter No. of Grooves Thread Length
(mm) (mm) (mm)
NPT1"1/2 11.5 105 38 6 45
NPT1"1/4 11.5 105 32 4 45
NPT1/2 14 80 18 4 35
NPT1/4 18 62 11 4 28
NPT1/8 27 55 8 4 19
NPT1 11.5 95 26 4 45
NPT1/16 27 55 8 4 18
NPT2"1/2 8 145 55 8 65
NPT2 11.5 120 46 6 50
NPT3"1/2 8 165 70 10 68
NPT3/4 14 85 23 4 35

Our Advantages

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

Packaging & Shipping

1. Package:Plastic box,

2. Delivery:35 Days after your deposite

3. Shipping:By sea,By air,if small order,we can provide the Express.
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

WORKSHOP

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps
NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

Certifications

NPT High Speed Steel Steel M2 Taper Pipe Thread Taps

FAQ

Q:What is your MOQ?
A:It depends on specific products.please contact us for more information
Q:What if the products arrived damaged?
A:Send us the photo of damaged products to confirm,we will replace them in your next order
Q:What is your delivery terms?
A:We accept EXW,FOB,etc. We will choose the most convenient one foe you with less cost
Q:How many markets do you have?
A:Germany Dubai Russia etc

Q:Can I buy a ISO529 hand tap sets sample for testing?
A:yes we accept the sample orders
Q:How can I contact with you?
A:You can send us inquiry directly through alibaba.or you can contact through any method listed below
