Basic Info.
Model NO.
M2-M68
Brand
OEM
Standard
Metric
Application for Machine Tool
Lathe
Pieces
3
Application
Manual
Customized
Non-Customized
Surface
Bright,Ti-Coated,Tian
Transport Package
Plastic Box
Specification
M2-M68
Trademark
OEM
Origin
Danyang, Jiangsu
HS Code
8207400000
Production Capacity
45000PCS/Month
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 10.00cm
Package Gross Weight
15.000kg
Product Description

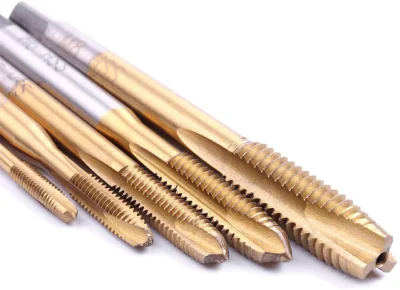

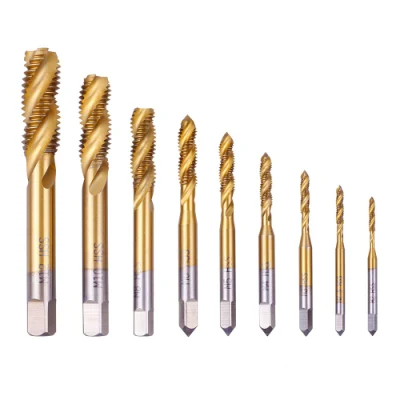

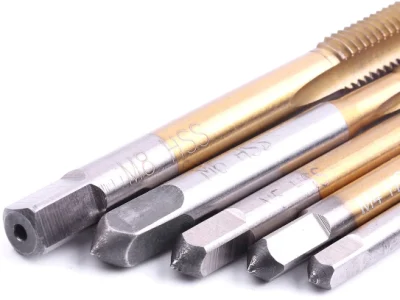

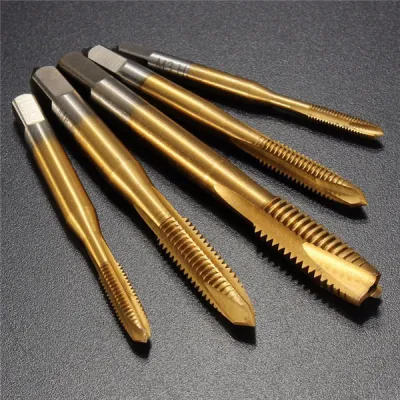

Details of HSS Machine Taps:
- High hardness, fast cutting, wear high temperature.
- Spiral groove is conducive to remove crumbs, not easily broken tap.
- Spiral Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and
- sticky materials processing.
Features of HSS Machine Taps:
1. High hardness, fast cutting, wear high temperature.
2. Spiral groove is conducive to remove crumbs, not easily broken tap.
3. Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and sticky materials processing.
Applicable Workpiece:
Tensile strength 750N / mm 2 or less the low-carbon steel, copper, aluminum,
magnesium alloy; anti-bonding strength 600 ~ 900N / mm 2 the high-carbon steel, alloy steel, bronze, etc.
Size:
| SIZE | OVERALL LENGTH | THREAD LENGTH |
| M2*0.4 | 41 | 8.0 |
| M2.2*0.45 | 44.5 | 9.5 |
| M2.5*0.45 | 44.5 | 9.5 |
| M3*0.5 | 48 | 11.0 |
| M3.5*0.6 | 50 | 13.0 |
| M4*0.7 | 53 | 13.0 |
| M5*0.8 | 58 | 16.0 |
| M5.5*0.9 | 62 | 17.0 |
| M6*1 | 66 | 19.0 |
| M7*1 | 66 | 19.0 |
| M8*1.25 | 72 | 22.0 |
| M9*1.25 | 72 | 22.0 |
| M10*1.5 | 80 | 24.0 |
| M11*1.5 | 85 | 25.0 |
| M12*1.75 | 89 | 29.0 |
| M14*2 | 95 | 30.0 |
| M16*2 | 102 | 32.0 |
| M18*2.5 | 112 | 37.0 |
| M20*2.5 | 112 | 37.0 |
| M22*2.5 | 118 | 38.0 |
| M24*3 | 130 | 45.0 |
| M27*3 | 135 | 45.0 |
| M30*3.5 | 138 | 45.0 |
| M33*3.5 | 151 | 51.0 |
| M36*4 | 162 | 57.0 |
| M39*4 | 170 | 60.0 |
| M42*4.5 | 187 | 67.0 |
| M45*4.5 | 187 | 67.0 |
| M48*4 | 187 | 67.0 |
| M52*5 | 200 | 70.0 |
| M56*5.5 | 200 | 70.0 |
| M60*5.5 | 221 | 76.0 |
| M64*6 | 224 | 79.0 |
| M68*6 | 234 | 79.0 |
Package and Delivery:

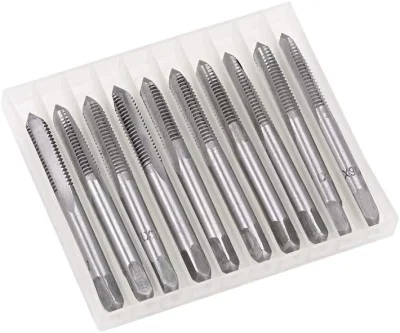

1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
