Basic Info.
Model NO.
01-1
Brand
Cuttingcraft
Application for Machine Tool
Milling
Application
Manual, Machine Use
Customized
Non-Customized
Usage

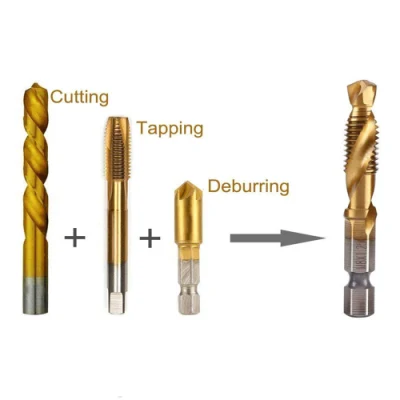

3 in 1(Punching Tapping Deburring)
Size
M3-M10
Weight
0.11kg
System
Combined Machine Tap Drill
Transport Package
Carton Box
Specification
100*70*7mm/100*73*13mm
Trademark
Cuttingcraft
Origin
China
Production Capacity
10000 Per Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

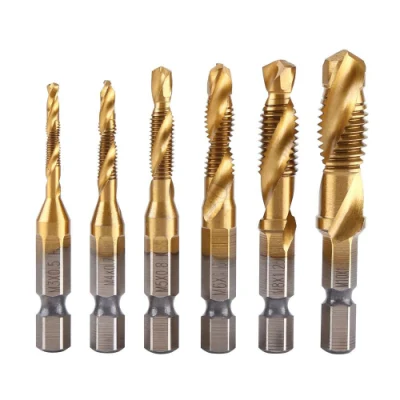

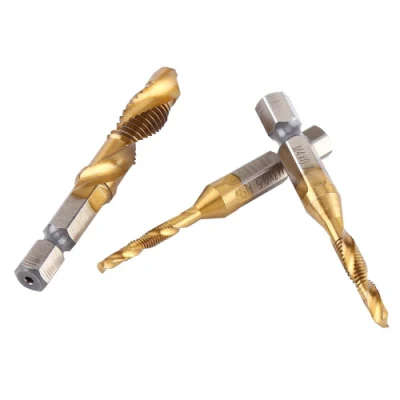

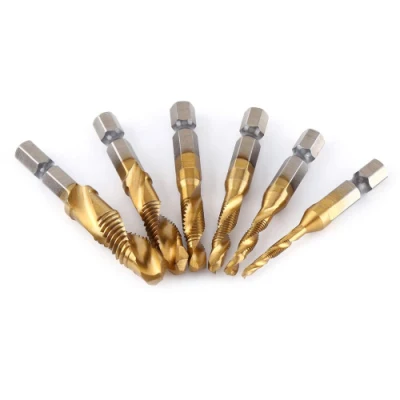

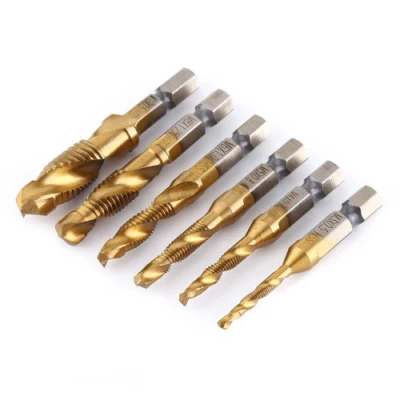

Combination Drill Tap Bit Set
It is applicable to the processing of soft metals (such as aluminum alloy, zinc alloy, tin alloy), thin wood and plastics with a thickness of less than 5mm. Please note that steel materials are not suitable and easy to break.
| 6PC 4343 White Diamond long(OPP package) | ||||||
| specification | Tooth distance(mm) | cut length(mm) | shank length(mm) | overall length(mm) | Package size | Weight |
| M3 | 0.5 | 40 | 27 | 67 | 120*55*7mm | 88g |
| M4 | 0.7 | 41 | 27 | 68 | ||
| M5 | 0.8 | 43 | 27 | 70 | ||
| M6 | 1 | 43 | 27 | 70 | ||
| M8 | 1.25 | 46 | 27 | 73 | ||
| M10 | 1.5 | 46 | 27 | 73 | ||
| 6PC 4343 White Diamond long(plastic box) | ||||||
| specification | Tooth distance(mm) | cut length(mm) | shank length(mm) | overall length(mm) | Package size | Weight |
| M3 | 0.5 | 40 | 27 | 67 | 105*68*15MM | 110g |
| M4 | 0.7 | 41 | 27 | 68 | ||
| M5 | 0.8 | 43 | 27 | 70 | ||
| M6 | 1 | 43 | 27 | 70 | ||
| M8 | 1.25 | 46 | 27 | 73 | ||
| M10 | 1.5 | 46 | 27 | 73 | ||
| 6PC 4343 Titanium plated long(OPP package) | ||||||
| specification | Tooth distance(mm) | cut length(mm) | shank length(mm) | overall length(mm) | Package size | Weight |
| M3 | 0.5 | 40 | 27 | 67 | 120*55*7MM | 88g |
| M4 | 0.7 | 41 | 27 | 68 | ||
| M5 | 0.8 | 43 | 27 | 70 | ||
| M6 | 1 | 43 | 27 | 70 | ||
| M8 | 1.25 | 46 | 27 | 73 | ||
| M10 | 1.5 | 46 | 27 | 73 | ||
| 6PC 4343 Titanium plated long(plastic box) | ||||||
| specification | Tooth distance(mm) | cut length(mm) | shank length(mm) | overall length(mm) | Package size | Weight |
| M3 | 0.5 | 40 | 27 | 67 | 105*68*15mm | 110g |
| M4 | 0.7 | 41 | 27 | 68 | ||
| M5 | 0.8 | 43 | 27 | 70 | ||
| M6 | 1 | 43 | 27 | 70 | ||
| M8 | 1.25 | 46 | 27 | 73 | ||
| M10 | 1.5 | 46 | 27 | 73 | ||
