Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies

Buy high-quality Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies direct from our factory. Fast shipping and competitive prices. Shop now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • SIZE
  • Application
  • WORKSHOP
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
M10X1.5
Pieces
1
Application
Motorize, Manual
Customized
Non-Customized
Surface Finishing
Bright
Usage
Machine Tools
Flute Type
Roll
Product Name
Round Die
Transport Package
Cartons
Specification
M10X1.5
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
5000000 Per Mouth

Product Description

Product Description

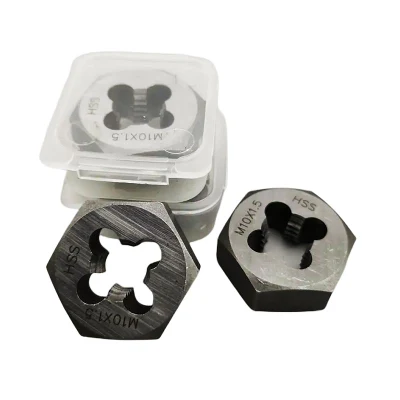

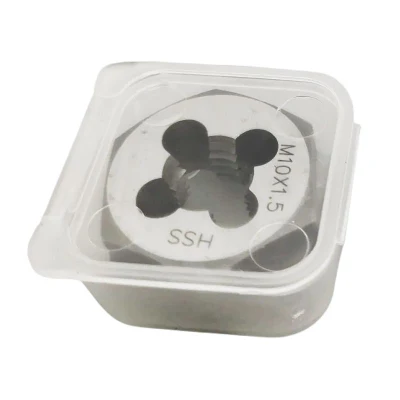

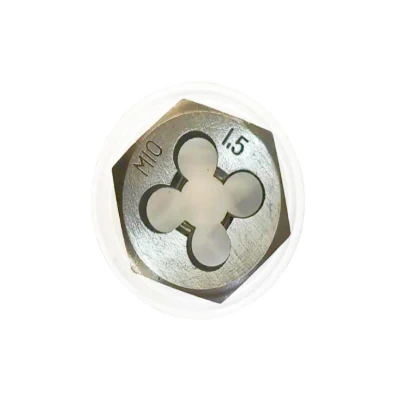

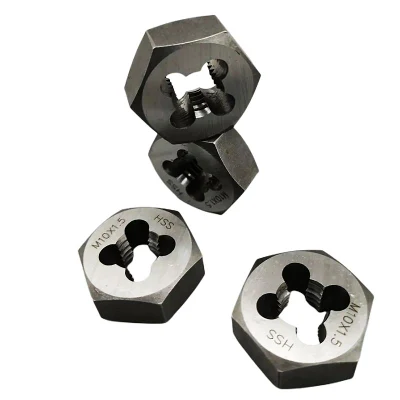

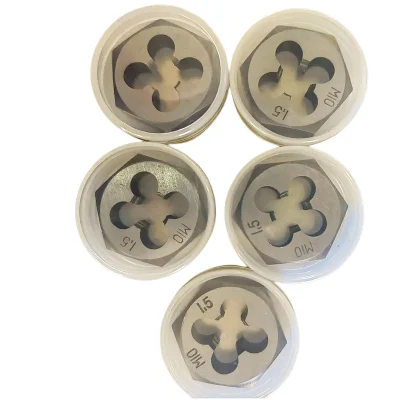

  • Hex Die: Thread size: m10x1.5; Square: 27mm ; Thickness: 11mm ; accuracy class: 6g. Made of high speed steel, hardness, high torque, good toughness and wear-resistance.
  • Applications: Can process, correct or clean the external threads. Suitable for general purpose threading in stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic, etc.. Great for maintenance and repair work on pipes, boards and machinery.
  • Features: Conical locking hole, strong locking and not loose. Perfect for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.
  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened. The end of the bar should be chamfered 1*45 degree, and the chamfer is too large to cut in.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread. Excessive diameter can easily cause difficult cutting and lead to damage to the die teeth.
  • Product Name Hex Die
    Model M3-M30
    Brand OEM
    Material 9SiCr Alloy Steel/HSS-M2,4341,4241
    Standard DIN382
    Shape hex
    Surface Finish Bright,TiN,Oxide Steam
    Marking Laser Marking, Engrave
    Application External thread processing and return teeth
    Thread Coarse thread,fine thread
    Suitable material copper plate, aluminum alloy, medium/bottom carbon steel, cast iron, 304 stainless steel

    Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies

SIZE
Size Limit Outside Thinkness
M3x0.5 6g 19 5
M3.5x0.6 6g 19 5
M4x0.7 6g 19 5
M4.5x0.75 6g 19 7
M5x0.8 6g 19 7
M6x1 6g 19 7
M7x1 6g 22 9
M8x1.25 6g 22 9
M9x1.25 6g 22 9
M10x1.5 6g 27 11
M11x1.5 6g 27 11
M12x1.75 6g 36 14
M14x2 6g 36 14
M16x2 6g 41 18
M18x2.5 6g 41 18
M20x2.5 6g 41 18
M22x2.5 6g 50 22
M24x3 6g 50 22
M27x3 6g 60 25
M30x3.5 6g 60 25
M33x3.5 6g 60 25
M36x4 6g 60 25
M39x4 6g 70 30
M42x4.5 6g 70 30
M45x4.5 6g 85 36
M48x5 6g 85 36
M52x5 6g 85 36
M3x0.35 6g 19 5
M4x0.5 6g 19 5
M5x0.5 6g 19 5
M6x0.75 6g 19 5
M7x0.75 6g 22 9
M8x0.75 6g 22 9
M8x1 6g 22 9
M9x1 6g 22 9
M10x1 6g 27 11
M11x1 6g 27 11
M12x1 6g 36 10
M12x1.25 6g 36 10
M12x1.5 6g 36 10
M14x1 6g 36 10
M14x1.25 6g 36 10
M14x1.5 6g 36 10
M16x1.5 6g 41 14
M18x1.5 6g 41 14
M18x2 6g 41 14
M20x1.5 6g 41 14
M20x2 6g 41 14
M22x1.5 6g 50 16
M22x2 6g 50 16
M24x1.5 6g 50 16
M24x2 6g 50 16
M26x1.5 6g 60 18
M27x1.5 6g 60 18
M27x2 6g 60 18
M28x1.5 6g 60 18
M30x1.5 6g 60 18
M30x2 6g 60 18
M32x1.5 6g 60 18
M33x1.5 6g 60 18
M33x2 6g 60 18
M35x1.5 6g 60 18
M36x1.5 6g 60 18
M36x2 6g 60 18
M36x3 6g 60 25
M38x1.5 6g 70 20
M39x1.5 6g 70 20
M39x2 6g 70 20
M39x3 6g 70 30
M40x1.5 6g 70 20
M40x2 6g 70 20
M42x1.5 6g 70 20
M42x2 6g 70 20
M42x3 6g 70 30
M45x1.5 6g 85 22
M45x2 6g 85 22
M45x3 6g 85 36
M48x1.5 6g 85 22
M48x2 6g 85 22
M48x3 6g 85 36
M50x1.5 6g 85 22
M52x1.5 6g 85 22
M52x2 6g 85 22
M52x3 6g 85 36
Application
  1. Dies for processing external threads consist of a cutting part, a positioning part and a chip hole.
  2. Dies can be divided into round dies, square dies, hex dies according to the shape. They are also called as ordinary thread dies, pipe thread dies and tapered pipe thread dies according to the purpose.
  3. Use chip fluid (oil) to obtain quality threads, and it is also suitable for thread maintenance. Suitable lubricating oil is conducive to cutting or cooling, making cutting more brisk, improving smoothness and dimensional accuracy.
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
WORKSHOP
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies
Certifications

Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies

Packaging & Shipping

Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies

Bright Finished HSS Hexagon Die Nuts DIN382 Standard Thread Dies

FAQ

Q:Are you a trade company or Manufacture.
A:we are a prfessional manufacurer.
Q:What is your MOQ?
A:It depends on specific products.please contact us for more information
Q:What if the products arrived damaged?
A:Send us the photo of damaged products to confirm,we will replace them in your next order
Q:What is your delivery terms?
A:We accept EXW,FOB,etc. We will choose the most convenient one foe you with less cost
Q:How many markets do you have?
A:Germany Dubai Russia etc

Q:Can I buy a Thread dies sample for testing?
A:yes we accept the sample orders
Q:How can I contact with you?
A:You can send us inquiry directly through alibaba.or you can contact through any method listed below
